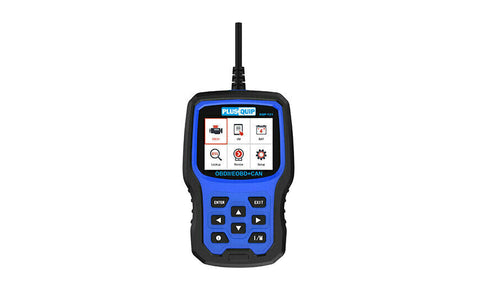

plusquip EQP-121 (Upgraded version) OBD II Hand Held Scan Tool

• 2.8” Colour Screen
• Does Battery Test
• Provides O2 Sensor test data
• Can Print Reports via PC connection
• Operating Voltage: 8.0 - 18.0Vdc
• Operating Temp.: 0°C - 60°C
• Storage Temp.: -20°C - 70°C
• Dimensions: 155 x 98 x 33mm
• Weight: 0.38kg
• This is a universal code reader and will work on all vehicles built after 1996 carrying the OBDII protocol such as: CAN, J1850 PWM, J1850 VPW, ISO9140, KWP2000
• Read code
• Clear code
• Live data stream
• Freeze frame data
• I/M readiness
• Vehicle Info
• O2 sensor test data
• On-board monitoring
• EVAP system test
• Real-time battery voltage
• Help function (view specific fault code explanation)
• Records and plays back fault code
• Review fault code
• Built-in OBD2 fault code lookup library
• Multilingual menu options and code definitions
• Print diagnostic reports via PC connection
• Software upgradable
• Colour screen (Upgraded version) Upgraded Up

Display: Backlit 128 x 64-pixel display with contrast adjustment
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
External Power: 8 to 18 V provided via vehicle

Kit includes
PLUSQUIP EQP-121 OBDII/EOBD Code Reader
User’s Guide
USB cable
OBDII Cable
Storage Pouch
