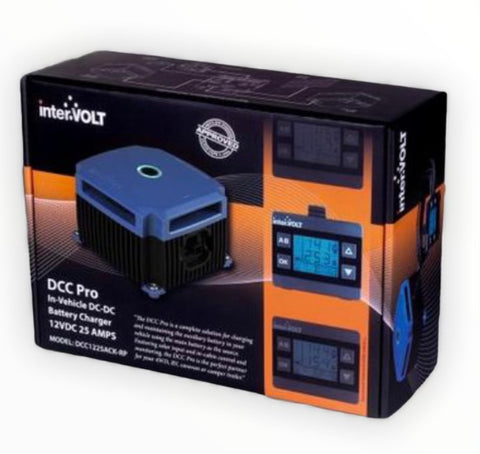

DC/DC INTER VOLT R2.0 In-Vehicle DC-DC PRO Battery Charger

  • Sale
  • Regular price $599.00

Or 10 interest free payments from $59.90 with What's this?

or make 4 interest-free payments of $149.75 AUD fortnightly with Afterpay More info



The DCC Pro R2.0 In-Vehicle DC-DC Battery Charger was developed for the purpose of charging and maintaining any auxiliary battery in an installation where the starting battery is used as the supply source. It has been designed for use in 4WDs, RVs, buses, coaches, caravans, campers or any vehicle with a 12VDC electrical system.

The DCC Pro is built for our tough Australian conditions. Unlike many imported products, particularly those produced for the European market, it is designed to maintain output in the harshest of environments under the highest ambient temperatures.

The DCC Pro is a standalone power conversion device. It will manage a variety of different battery types according to their specific charging requirements. As no modification to the vehicle’s original wiring is required this ensures the manufacturer’s electrical system is not compromised in any way.

The DCC Pro is a highly innovative product with many unique features. It has the flexibility to adapt to almost any vehicle, old or new, simple or complex with or without an ECU controlled electrical system and even allows the operator monitor the charging status from the comfort of the cabin!






Specifications

Input Voltage –
 Main: 9 – 16 VDC
 Solar: 18 – 28 VOC (open circuit Voltage – no load)

Solar Power  Unrestricted (system limited to 25 Amps)

Continuous Rating  25 Amps@50°C (de-rate from 50°C to 85°C)

Current Draw  Charging Device:
In stand by: Including LED indicator <10mA
At full load: Up to 35 Amps

Current Draw – Remote Display:
With backlight off: 10mA max
With backlight on: 45mA max

Output Voltage – (Voltage values subject to tolerance ± 0.1V)

  •  Standard Lead Acid:
  • Boost/CC: 14.5 VDC, Absorption/CV: 14.4 VDC, Float/CV: 13.4 VDC
  •  Absorbed Glass Mat:
  • Boost/CC: 14.7 VDC, Absorption/CV: 14.6 VDC, Float/CV: 13.6 VDC
  •  Gelified Electrolyte:
  • Boost/CC: 14.3 VDC, Absorption/CV: 14.2 VDC, Float/CV: 13.5 VDC
  •  Lead Calcium:
  • Boost/CC: 14.9 VDC, Absorption/CV: 14.8 VDC, Float/CV: 13.8 VDC
  •  LiFePO4 BMS:
  • Boost/CC: 14.6 VDC, Absorption/CV: – , Float/CV: 14.4 VDC

Electrical Protection
 Over temperature disconnect – auto re-connect
 Under Voltage shutdown – auto re-start
 High Voltage disconnect – auto re-connect
 Reverse polarity protection on all terminals

Environmental Protection
 Charging Device: IP67 (internal components only)
 Remote Display: IP40 (not dust or water resistant)

Operating Temperature – -20°C to +85°C

Operating Humidity – Up to 100% (non-condensing)

Charging Device Materials
 Heatsink: E-Coated ADC-3 die cast aluminium
 Blue Plastics: 10% glass reinforced PC/ABS alloy
 Black Plastics: 15% glass reinforced PBT
 Transparent Plastics: Temperature resistant PMMA

Remote Display Materials
 Dark Grey Plastics: Temperature resistant PC/ABS alloy
 Transparent Plastics: Temperature resistant PMMA

Terminal Material – Tin plated brass

Terminal Fasteners – 304 stainless steel

Conformity – AS/NZS CISPR 11:2004 for EMC

Dimensions
 Charging Device: 112 x 112 x 75mm (including terminal cover)
 Remote Display: 60 x 36 x 59mm (including mounting bracket)

Weight
 Charging Device: 690 grams
 Remote Display: 55 grams
