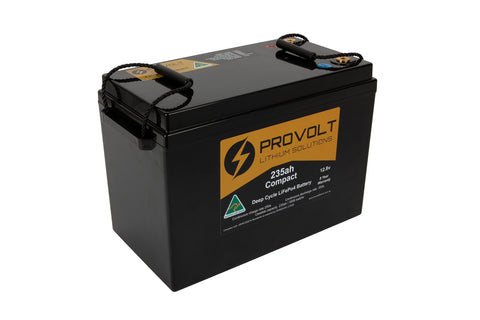

Big capacity and a high discharge rate in a compact package.
Measuring just 345mm L x 190mm W x 245mm H this compact Lithium battery is the smallest in its capacity class and is a drop in replacement for many 100 - 120ah AGM batteries*.
Up to 1/3 the weight and double the useable capacity of comparable AGM batteries. Manufactured with the highest quality Prismatic Cells and a premium Battery Management System allowing a high continuous discharge rate of a huge 250 amps with a 700 amp peak. Suitable to run inverters up to 3000 watts.
Like all Provolt Batteries, the Compact 240 is designed and built-in Australia and comes with a 5 Year Warranty.
230ah useable capacity
LiFePo4 Prismatic cells
250 amp continuous discharge rate
700 amp peak discharge rate
125 amp max charge rate
Cycle life 2000 to 5000 Cycles
Inbuilt cell balancing
345mm x 190mm x 245mm
Model No C235
Rated Voltage 12.8v
Amp Hr rating nominal 235
Amp Hr rating useable 230
Maximum continuous discharge rate 250a
Peak discharge rate< 3 sec 600a
Maximum charge rate 125a
Recommended charge voltage 14.4 - 14.8v
Overcharge cutout voltage- Battery 15.0v
Overcharge cutout voltage- Cell 3.8v
Low voltage cutout- Battery 10.0v
Low voltage cutout- Cell 2.3v
Cell Configuration 2p4s Prismatic
Cycle life >2500 @ 1c 100% DOD
Cell chemistry LiFePo4
Weight kg 21
Dimensions L x W x H mm 345 x 190 x 245
Charging temperature range 0°c to +60°c
Discharge temperature range -20°c to +60°c
Warranty 5yr Replacement
Due to continuous product development, specifications may change without notice
