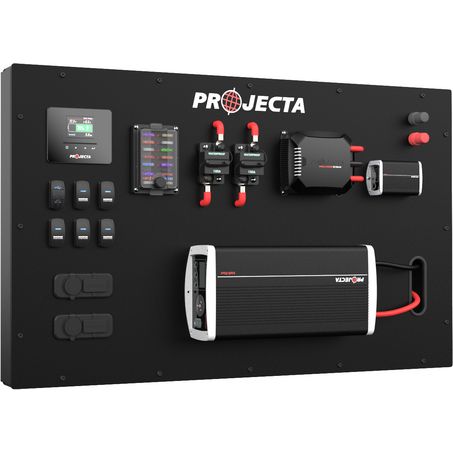

• Features the multi-chemistry 25Amp DC to DC dual battery charger, 1000W pure sine wave inverter and more
• 25 Amp, 1000 Watt
• DC-DC alternator input voltage: 9-32Vdc
• Max solar input: 32Vdc
• Batteries supported: Gel, AGM, Calcium & Lithium
• Supported battery capacity: 5-320AH
• Board Dimensions: 900x 550mm
FEATURES:
• DC-DC Charger (IDC25X)
- Input Voltage: 9-32Vdc
- Maximum Solar Input: 35Vdc
- Maximum Panel Size: 360W
- Batteries Supported: Gel, AGM,
Calcium, Lithium
• 1000W Pure Sine Wave Inverter (IP1000)
- Converts 12V power to 240V
• Battery Monitor (BM500-BT)
- Maximum Current: 320A
- Batteries Capacity Supported: 5~320Ah
- Batteries Supported: Wet, Gel, AGM, Calcium
• Sockets & Switch Panel
- USB Output: 5V,3.1A
- Merit Socket: Amp Rating: 16A at 12V, 8A at 24V
- Cigarette Socket: Amp Rating: 20A at 12V, 10A at 24V
- Switches: Amp Rating: 20A at 12V - Heavy Duty Connector: Amp Rating: 50A,
suits cable size 8mm? (8B&S)
- Circuit Breaker: Amp Rating: 100A/150A
• Low Voltage Disconnect
- Fuse Box: Load: 25A per circuit
- Circuits: 10-way ATS Blade Fuses
