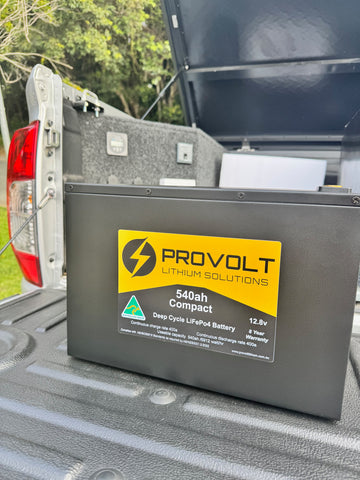

Provolt 540Amp Compact Deep Cycle Lithium Battery

540AH Capacity  |  400A Discharge Rate  |  8-Year Warranty

Huge capacity in an ultra-compact footprint. The Provolt Compact 540AH packs an extraordinary amount of energy into a super-compact 352mm × 292mm × 245mm case — proudly made in Australia and built for those who refuse to compromise on power or space.

Why the Provolt Compact?

• Compact Size, Big Performance — 540AH of useable capacity in an ultra-compact footprint. Maximum power, minimum space.
• High Discharge & Charge Rate — 400A continuous discharge and 400A max charge rate delivers power on demand for the most demanding applications.
• Next-Gen BMS — High-efficiency, low-resistance Battery Management System with inbuilt cell balancing for smarter energy management and extended battery life.
• Built for Australia — Designed and manufactured to withstand the unique, demanding conditions of the Australian environment.
• 8-Year Warranty — Industry-leading coverage for long-term peace of mind.

Technical Specifications

• Voltage: 12V
• Useable Capacity: 540AH
• Cell Chemistry: LiFePO4 Prismatic
• Continuous Discharge Rate: 400A
• Peak Discharge Rate: 900A
• Max Charge Rate: 400A
• Cycle Life: >3,000 cycles
• Weight: 52kg
• Dimensions: 352mm × 292mm × 245mm
• BMS: High-efficiency, low-resistance BMS with inbuilt cell balancing
• Compliance: AS/IEC 62619 compliant as per AS/NZS 3001 requirements
