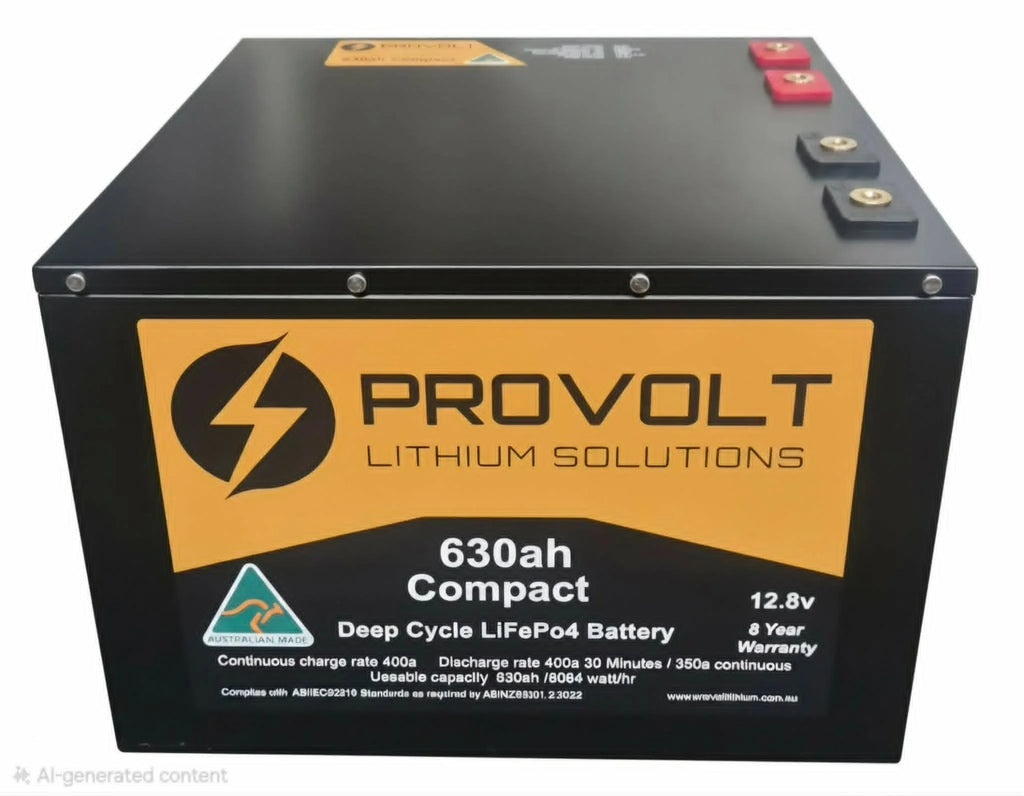

Provolt Compact 630 Deep Cycle Lithium Battery

630AH Capacity  |  400A Discharge Rate  |  8-Year Warranty

Our highest capacity deep cycle battery — in a super-compact footprint. The Provolt Compact 630AH delivers an extraordinary 630AH of useable energy in a 365mm × 365mm × 250mm case — proudly made in Australia for those who demand the absolute most from their energy system.

Why the Provolt Compact?

• Compact Size, Big Performance — Our highest capacity battery yet, still in a space-saving compact design. Maximum power, minimum footprint.
• High Discharge & Charge Rate — 400A continuous discharge and 400A max charge rate delivers power on demand for the most demanding applications.
• Next-Gen BMS — High-efficiency, low-resistance Battery Management System with inbuilt cell balancing for smarter energy management and extended battery life.
• Built for Australia — Designed and manufactured to handle the unique, demanding conditions of the Australian environment.
• 8-Year Warranty — Industry-leading coverage for long-term peace of mind.

Technical Specifications

• Voltage: 12V
• Useable Capacity: 630AH
• Cell Chemistry: LiFePO4 Prismatic
• Continuous Discharge Rate: 400A
• Peak Discharge Rate: 900A
• Max Charge Rate: 400A
• Cycle Life: >3,000 cycles
• Weight: 52kg
• Dimensions: 365mm × 365mm × 250mm
• BMS: High-efficiency, low-resistance BMS with inbuilt cell balancing
• Compliance: AS/IEC 62619 compliant as per AS/NZS 3001 requirements
